Understanding Motorized Bike Headset Installation - Diagrams and Setup Videos
- Motored Life
- Jun 7
- 2 min read
Setting up the headset bearings on a motorized bike can be tricky without clear guidance. Many riders struggle with the correct installation process, which can affect the bike’s handling and safety. Using a headset installation diagram alongside a setup video can make this task much easier and more reliable. This post explains how to read these diagrams and follow videos to install motorized bike headset bearings properly.
How to Read a Headset Installation Diagram

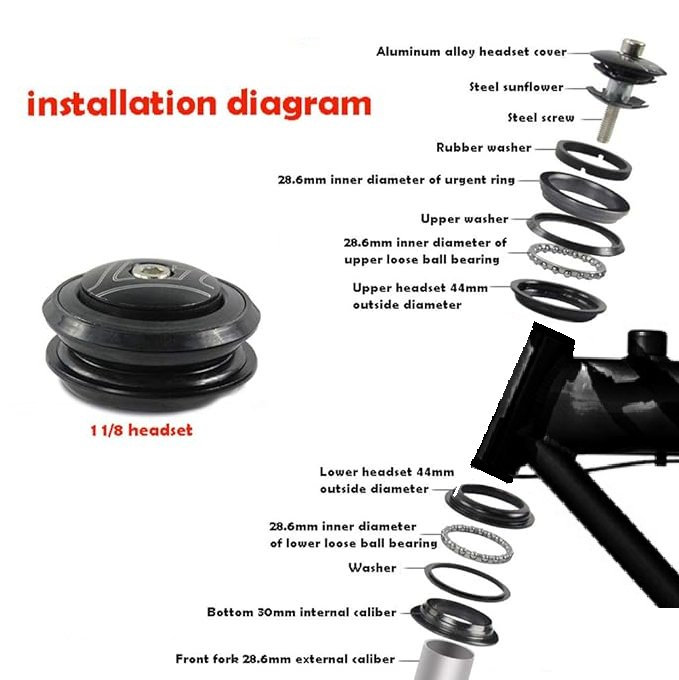

A headset installation diagram breaks down the parts and their order in the headset assembly. It shows how bearings, cups, spacers, and other components fit together inside the bike’s head tube.
Identify each part: The diagram labels bearings, bearing cups, the fork’s steerer tube, and any seals or spacers.
Note the orientation: Bearings usually have a specific direction they face. The diagram shows which side should face up or down.
Follow the sequence: The order of parts is critical. The diagram illustrates the exact stacking order from the frame to the fork.
Check for torque specs: Some diagrams include recommended torque values for tightening headset nuts or bolts.
For example, a common setup places the lower bearing cup pressed into the frame’s head tube, the bearing inside that cup facing upward, and the fork’s steerer tube passing through. The upper bearing cup and bearing sit above, with spacers and the top cap securing everything.
Practical Tips for Installing Headset Bearings
Clean all parts thoroughly before assembly to remove dirt or old grease.
Use high-quality grease on bearings and cups to ensure smooth movement and prevent rust.
Press bearings evenly using the right tools to avoid damaging the bearing races.
Check for play and smooth rotation after installation by moving the fork back and forth.
Adjust preload carefully so the headset is tight enough to eliminate wobble but not so tight it binds.
Common Issues and How to Fix Them
Loose headset: Usually caused by insufficient preload. Tighten the top cap slightly and recheck.
Stiff steering: May result from over-tightening or dirt inside bearings. Loosen, clean, regrease, and retighten.
Bearing noise: Indicates dry or damaged bearings. Replace bearings and apply fresh grease.
